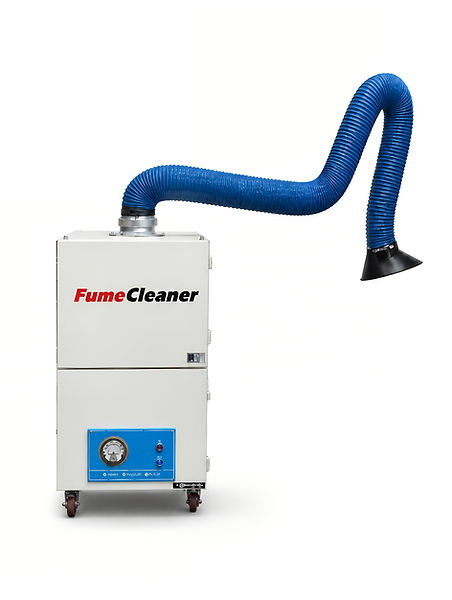

Welding fume filter dust collector

Portable fume filtration dust collector for reducing odors of various fumes such as CO2, argon, MAG, and laser markings; features a flexible arm hood fixed at the location of various pollutants for concentrated suction and dust collection.

Request a quote

Catalog

Filtration dust collection system

With a 3-stage filter structure: AL Washable + HEPA Filter + Carbon Filter

A portable fume filter dust collector that powerfully sucks in and filters soot and fumes generated during welding

APPLICABLE SITE

		용접 흄 발생현장
납연기제거

흄크리너 구성

SPECIFICATIONS

MODEL		YFC-02	YFC-03	YFC-05
Fan Motor	Efficiency Power	1.5kw x 2Pole	2.2kw x 2Pole	3.7kw x 2Pole
		220V, 380V 4403P, 60Hz
Flexible Am	길이(M)	2M / 3M / 4M
	수량	1SET
	직경(Ø)	Ø 150mm
Filter	여과효율	99.97%
	여과면적	19.3㎥
	형상	HEPA
Sound Level	최소소음	60dB(A)	65dB(A)	65dB(A)
	최대소음	65dB(A)	70dB(A)	70dB(A)
Turbo Fan	풍량	25㎥/min	40㎥/min	60㎥/min
	정압	230㎥Aq	230mmAq	230mmAq
weight (Filter, Am 포함)		62kg	73kg	82kg

* 위 사양은 60Hz 기준이며, 50Hz 적용시 풍량이 약 20% 감소합니다.

DIMENSIONS

MODEL	YFC-02	YFC-03	YFC-05
A	930	1100	1175
B	670	670	670
C	670	670	670

상기 치수는 제품 성능 및 개선을 위해 변경될 수 있으니 반드시 구매 전 신규 도면을 확인하시길 바랍니다.
